产品详细

Professional Ratchet Type Crimping Tool

- Professional coaxial crimping tool, diferent types of die could be selected according to special needs
- With ratchet function, it needs less strength to operate and easy to fold it
- The whole body is made of carbon steel and the surface dealing by antioxidant
- Professional Ratchet Type Crimping Too

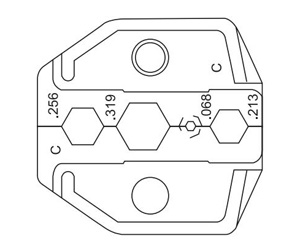

HY-301A	HY-301B	HY-301C	HY-301C1

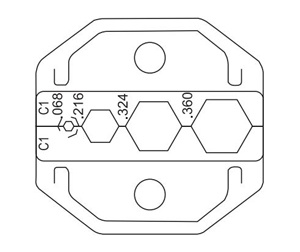

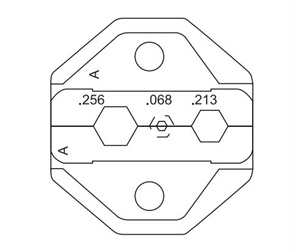

HEX .256” .068” .213” (6.50/1.72/5.41mm) RG 58, 59, 62	HEX .187” .213” .319” (4.75/5.41/8.10mm) RG 58, 6, 174	HEX .256” .319” .068” .213” (6.50/8.10/1.72/5.41mm) RG 58, 59, 62, 6	HEX .068” .216” .324” .360 (1.72/5.49/8.23/9.14mm) F-59, 62, 6

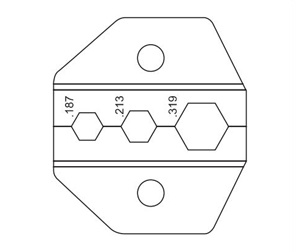

HY-301C2	HY-301D	HY-301D1	HY-301D2

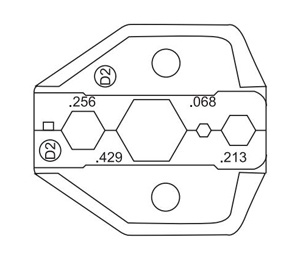

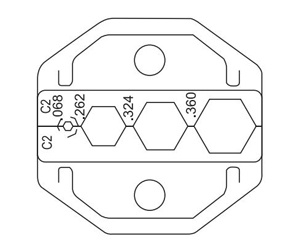

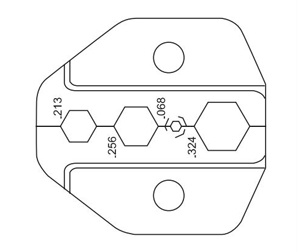

HEX .068” .262” .324” .360” (1.72/6.65/8.23/9.14mm) CATV “F” Connectors RG 59 & 6	HEX .213” .256” .068” .324” (5.41/6.50/1.72/8.23mm) RG 58, 59, 62, 6	HEX .068” .178” .324” (1.73/4.52/8.23mm) RG 58, 6, 174	HEX .256” .429” .068” .213” (6.50/10.90/1.73/5.41mm) RG 58, 59, 62, 11, 8, 213

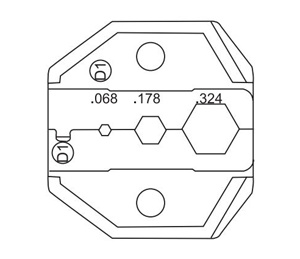

HY-301F1	HY-301F2	HY-301G	HY-301J

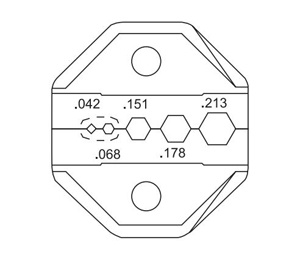

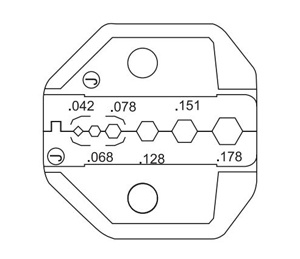

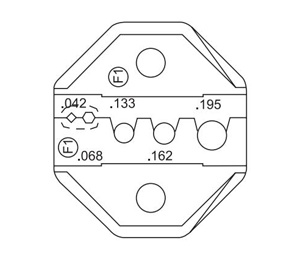

OVAL .042” .068” .133” .162” .195” (1.07/1.72/3.38/4.11/4.95mm) Fiber Optic SMA(Oval Type)	HEX .042” .068” .151” .178” .213” (1.07/1.72/3.84/4.52/5.41mm) RG 58, 174, Belden 8281 Fiber Optic SMA, SMB Connectors	HEX .043” .068” .100” .137” .213” .255” (1.09/1.72/2.54/3.48/5.41/6.48mm) RG 58, 59, 62, 174, Fiber Optic	HEX .042” .058” .078” .128” .151” .178” (1.07/1.72/1.98/3.25/3.84/4.52mm) RG 174, 179, Belden 8218, Fiber Optic

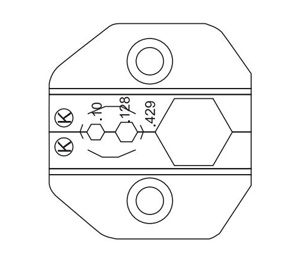

HY-301K	HY-301K3	HY-301L	HY-301M

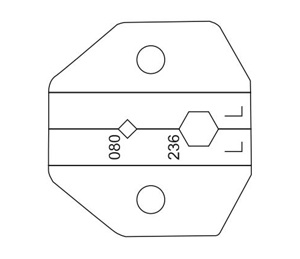

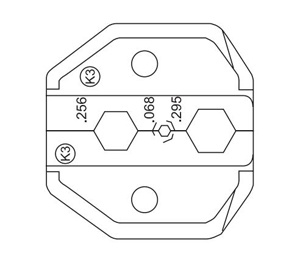

HEX .100” .128” .429” (2.54/3.25/10.90mm) RG 58, 11, 174, 179, 213	HEX .256” .068” .295” (6.50/1.72/7.49mm) RG 59, 6	HEX .080” .236” (2.03/5.99mm) RG 59	HEX .060” .215” (1.54/5.48mm) RG 58

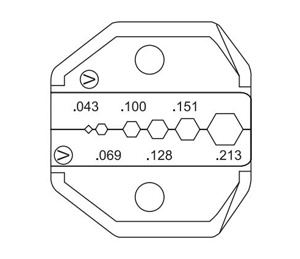

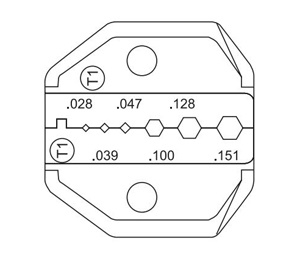

HY-301P	HY-301P1	HY-301T	HY-301V

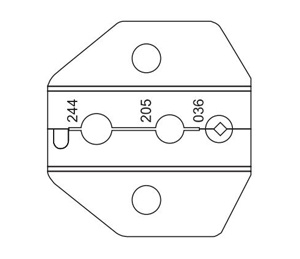

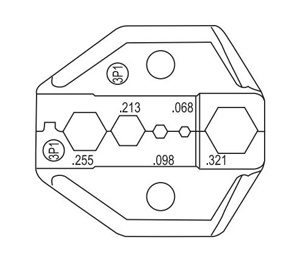

OVAL .344” .205” .036” (6.20/5.21/0.91mm) RG 58, 59, 62, (Oval Type)	HEX .255” .213” .098” .068” .321” (6.48/5.41/2.49/1.73/8.15mm) RG 58, 59, 62, 6	HEX .028” .039” .047” .100” .128” .151” (0.71/1.00/1.20/2.54/3.25/3.84mm) RG 174, 178, 179, 180, 187, 196, 316	HEX .043” .069” .100” .128” .151” .213” (1.09/1.75/2.54/3.25/3.84/5.41mm) SMA, SMB, SMC,MCX

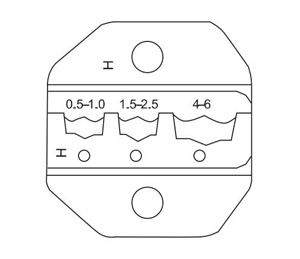

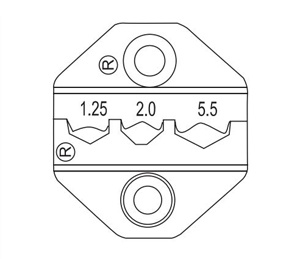

HY-301V1	HY-301X	HY-301H	HY-301R

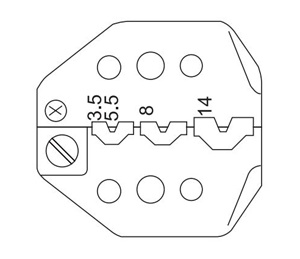

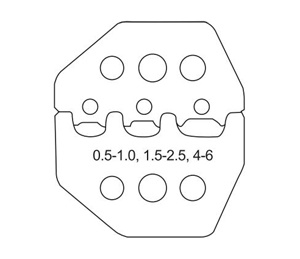

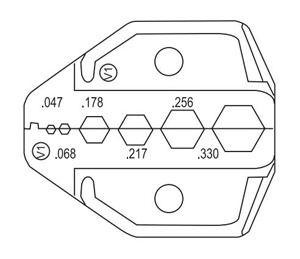

HEX .047” .068” .178” .217” .256” .330” (1.19/1.73/4.52/5.51/6.50/8.38mm) RG 59, 62, 6, 174 Fiber Optic	AWG 14, 12-10, 8, 6 JIS 3.5, 5.5, 8, 14m㎡ B-TYPE CONN	AWG 22-18, 16-14, 12-10 DIN 0.5-1.0, 1.5-2.5, 4-6m㎡ FOR INSULATED TERMINAL	AWG 22-18, 16-14, 12-10 JIS 1.25, 2.0, 5.5m㎡ VINYL INSULARED W O COPPER SLEEVE

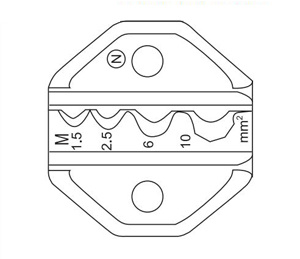

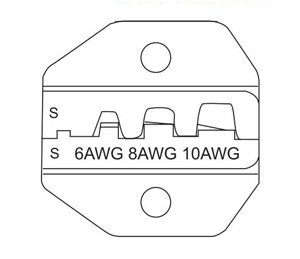

HY-301W	HY-301E	HY-301S	HY-301N

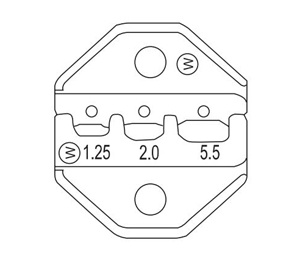

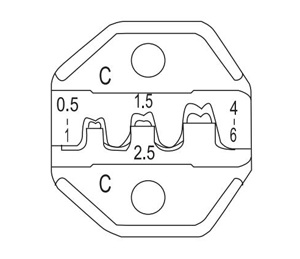

AWG 22-18, 16-14, 12-10 DIN 0.5-1.0, 1.5-2.5, 4-6m㎡ FOR INSULATED TERMINAL	AWG 22, 20, 18, 16, 14, 12 DIN 0.5, 0.75, 1.0, 1.5, 2.5, 4.0m㎡ PIN TERMINAL INSULATED OR NON-INSULATED FERRULES	AWG 10, 8, 6 DIN 6, 10, 16m㎡ PIN TERMINAL INSULATED OR NON-INSULATED FERRULES	AWG 20-18, 16-14, 13-10, 8 DIN 1.5, 2.5, 6, 10m㎡ JIS 1.25, 2.0, 5.5, 8m㎡ NON-INSULATED FERRULES

HY-301U	HY-301	HY-230C	HY-230A
AWG 14-22 NON-INSULATED OPEN BARREL & D-SUB, V.35 CONNECTORS	AWG 22-18, 16-14, 12-10 DIN 0.5-1.0, 1.5-2.5, 4-6m㎡ FOR INSULATED TERMINAL	AWG 20-18, 16-14, 12-10 INTER-LOCKING & NON-INSULATED	HEX .255” .187” .068” .213” (6.48/4.75/1.72/5.41mm) RG 58, 59, 62, 174

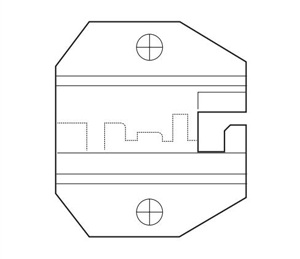

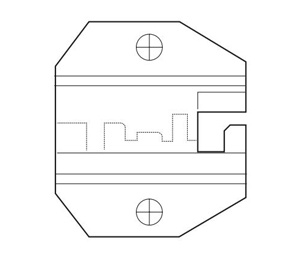

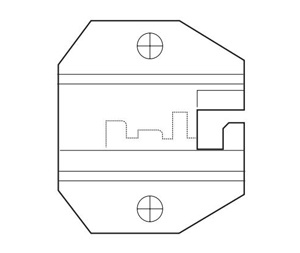

HY-230I	HY-230PA	HY-230H1	HY-3003D11

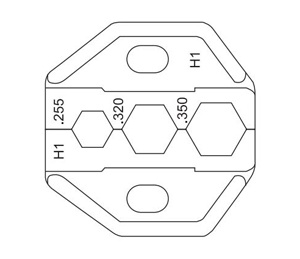

HEX .248” .204” .090” .068” .311” (6.30/5.18/2.29/1.72/7.90mm) RG 58, 59, 6, 174	HEX .255” .213” .100” .068” .324” (6.48/5.41/2.50/1.72/8.23mm) RG 58, 59, 62, 6	HEX .255” .320” .350” (6.48/8.13/8.90) CATV F Connectors RG 59, 6	RJ-45, used for 8P8C

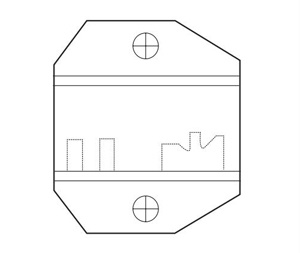

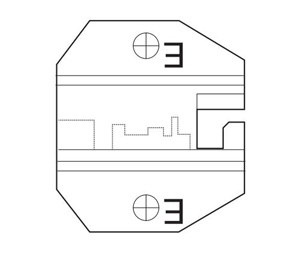

HY-3003D12	HY-3003D13	HY-3003D14	HY-3003D15
RJ-11, used for 6P6C, 6P4C, 6P2C	RJ-22, used for 4P2C, 4P4C	RJ-45, specialism used for AMP(8P8C)	RJ-45, used for 10P10C

HY-3003D16	HY-3003D17
RJ-45, used for 8P8C	RJ-11, specialism used for DEC and MMJ(6P6C, 6P4C, 6P2C)
